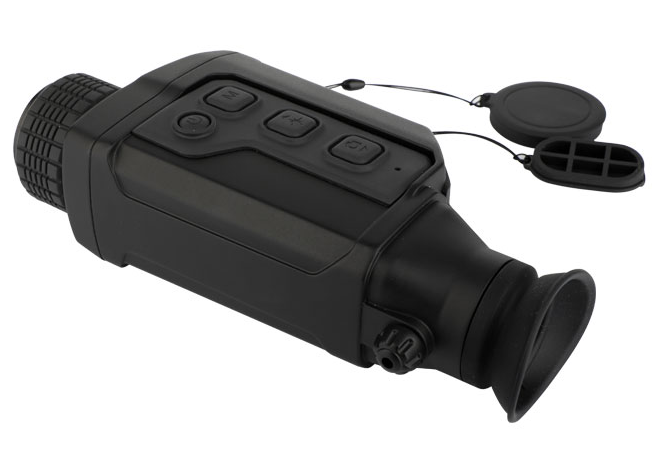

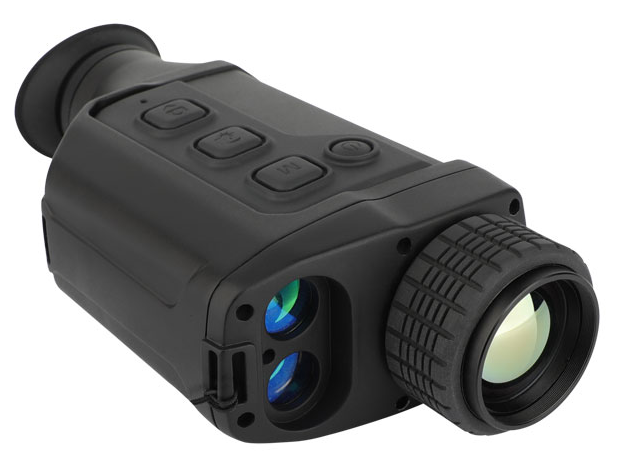

S236series Thermal Monocular
S236 series thermal monocular is a NEW product in 2022. It helps to reveal your surroundings and see targets over 1600 meters away with ease. Simple to use, low learning cost. A perfect companion for thermal imaging hunting or outdoor journey, whether in the darkness or your own backyard.
|
Items |
S236E |
S236 |
S236P |
|
Detector |
|||
|
Detector type |
VOx |
||
|
Pixels |
384×288 |
384×288 |
640×512 |
|
Array size |
12μm |
||
|
Image function |
|||
|
FOV |
10.5°x7.9° |
7.5°x5.7° |
12.5°x10° |
|
Lens focal length |
25mm |
35mm |
35mm |
|
Magnification |
2.3x |
3.25x |
1.95x |
|
NETD |
＜25mk |
||
|
Frame rate |
50HZ |
||
|
Focus |
Manual focus |
||
|
Digital zoom |
1.0~4.0X continuously |
||
|
Distance display |
yes |
||
|
LRF |
Distance range 10~1000m |
||
|
Storage |
|||
|
Storage |
Build-in，32GB |
||
|
photo |
Take more than 10,000 pictures |
||
|
recording |
support |
||
|
Power system |
|||
|
Battery type |
Lithium battery |
||
|
Battery working time |
＞6h |
||
|
External power supply |
DC5V/2A（ Type-C interface） |
||
|
Environmental parameters |
|||
|
Operating temperature |
-20℃～ +50℃ |
||
|
Storage temperature |
-40℃～ +70℃ |
||
|
Encapsulation |
IP66 |
||
|
Drop test |
1 m |
||
|
Physical features |
|||
|
Weight |
＜550g |
||
|
Dimension |
＜220x105x65mm |
||
|
Detection distance |
|||
|
Human 1.8*0.5m |
1000m |
1400m |
|
|
Car 2.3*2.3m |
1600m |
2200m |
|
|
Recognition distance |
|||
|
Human 1.8*0.5m |
500m |
700m |
|
|
Car 2.3*2.3m |
800m |
1100m |
|
