RT400 Expert infrared thermal imager

RT400Expert infrared thermal imager

The new RT400, equipped with a new generation of detector NETD as low as 35mK, captures more subtle hot spots, heatmaps are sharper and purer, and rich and powerful functions include Android OS blessing, trend analysis, area measurement, cloud access, etc., which is a new weapon born from expert-level full-scenario analysis work!

Clear heat maps and accurate temperature measurement

1. Equipped with 12μm uncooled infrared detector with a resolution of 480×360, supporting super resolution

2. NETD as low as 35mK, temperature measurement accuracy ± 2°C or ±2% of the reading (whichever is the maximum)

Rich lenses and fast focusing

1. The standard lens is 25°, and it supports optional wide-angle, telephoto, and ultra-telephoto lenses

2. Support macro lens, flexible adaptation to multiple scenes

Upgrade functions to improve efficiency

1. Android operating system, more convenient operation

2. Support intelligent image stabilization, the temperature measurement image is more stable

3. Support laser ranging and area measurement

4. Support up to 15 points/lines/zones, which can analyze more temperature details in the picture

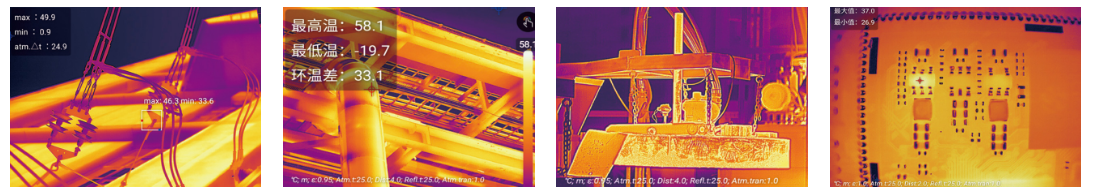

Electricity inspectionChemical operation and maintenance High temperature material monitoringElectronic and electrical research and development

Technical parameters

Thermal imaging
Detector type
Uncooled IR detector
Infrared resolution
480×360
Super resolution
960×720
Pixel size
12μm
Response band
7.5-14μm
Thermal Sensitivity (NETD)
＜35mK (25°C,F1.0)
Frame rate
25Hz
Lens focal length
Standard lens: 17.7mm, super telephoto lens: 60.9mm, telephoto lens: 31.5mm, wide-angle lens: 9.5mm
Field of View (FOV)
Standard lens: 25°×20°; Super telephoto lens: 7°×5.6°; Telephoto lens: 14°×11.2°; Wide-angle lens: 45°×36°
Spatial Resolution (IFOV)
Standard lens: 0.92mrad; super telephoto lens: 0.27mrad; telephoto lens: 0.52mrad; Wide-angle lens: 1.71mrad
Focusing mode
Manual focusing, one-key center focusing, auto center focusing, one-touch auto focusing, laser assisted focusing, electric fine-tuning
Minimum imaging distance
Standard lens: 0.6m, super telephoto lens: 4m, telephoto lens: 3m, wide-angle lens: 1m
Temperature measurement range
-20℃~ 150℃，100℃~650℃；Optional: 400°C~1500°C
Temperature measurement accuracy
± 2°C or ±2% of the reading, whichever is greater
Image shows
display screen
5-inch OLED touch screen with a resolution of 1280×720
Visible light camera
13 million pixels
Digital zoom
1-10 times
palette
19 species
Image mode
Infrared, visible light, picture-in-picture, dual-light fusion
Warm and wide stretching
In the tank
Measurement Analysis
Device-side analytics
Movable points, lines, boxes, circles, polygons support up to 15; Support up to 5 preset modes
Companion software
PC (IR analysis software) or mobile (IOS/Android APP)
Laser ranging
In the tank
Area area measurement
In the tank
Thermohygrometer
In the tank
positioning
In the tank
Temperature difference analysis
In the tank
Trend analysis
Supports recording and analyzing temperature trends
Image freezes
In the tank
Analytical reports
PDF format, and the device supports editing and importing templates
Companion software
PC (IR analysis software) or mobile (IOS/Android APP)
Image storage
storage media
It comes standard with 64GB Micro SD and supports up to 2TB
Text notes
In the tank
Voice annotations
In the tank

Video features
Radiated infrared video recording
It supports compressed full-emission video recording (.irv) and supports up to 25Hz video recording
Non-radiant infrared or visible video recording
Standard MP4 video recording
Radiated infrared video streaming
Connect PC software via Type-C/WLAN to transmit real-time radiated infrared video streams
Non-radiated IR video streaming
RTSP H.264
Video resolution
1280×720
System functions
Intelligent image stabilization
In the tank
Cloud services
Support cloud disk storage; Support automatic time synchronization
Intelligent panoramic splicing
Support device-side panoramic stitching function, one-click synthesis
Intelligent inspection
Support, general task package import, editing, and automatic naming of image specifications
Self-inspection of the inspection ledger
In the tank
Dual-light video
Support visible light and infrared simultaneous video recording, MP4 format
Communication protocols
Wi-Fi, Bluetooth, USB, 4G, 5G
Voice control
Voice assistant, quick command recognition
flashlight
In the tank
other
Microphone/speaker
10000mAh lithium battery, can be replaced on the spot, supports fast charging
battery
Rechargeable lithium battery, removable
Charging method
USB Type-C or dock charger
battery life
Continuous working time ≥ 6 hours (actual usage time depends on the environment and usage at the time)
External interface
USB3.0 Type-C, SD card, SIM card, Mini HDMI
Tripod interface
Support UNC 1/4-20 interface connection tripod
Operating temperature
-20°C~ 55°C
Operating humidity
10%~95% (non-condensing)
Storage temperature
-40°C~ 70°C
Protection level
IP54
Shock vibration
Shock 25g (IEC 60068-2-27); Vibration 2.5g (IEC60068-2-6)
Weight and dimensions
Approx. 1.3 kg (including battery), 144×129×307 mm (subject to actual conditions)
authentication
CE/RoHS/metrology certification, etc
Packing list
Infrared thermal imager, standard lens, lithium battery×2, charging stand, charger (including multi-country plug), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, drawings, data download card, calibration certificate, certificate of qualification, wrist strap (including wrist strap buckle), safety box, lens cover (including screws)
