Image+: distinguish smaller temperature differences and more details
-12μm 256×192 infrared detector, featuring low power consumption and small size
-40mK professional-grade high sensitivity to capture smaller temperature differences
-Brand new Matrix IV image algorithm based on AI
-500nit sunlight screen, brighter and easier on eyes
-4 image modes + 7 color palettes, providing rich image modes

Feature+: professional grade, full services based on thermal sensors, catering to all industrial control scenarios
-Based on the newly developed CPU, with a shorter startup duration of 6S, and smooth operation response

Software+: complete software PC client and App
-Complete secondary analysis software for PCs
-Heat map transmission & analysis applications for mobile devices

Performance+: rugged, easy to use, and quick to deploy
-Newly developed TPU material More wear-resistant
-15-hour battery life, shutdown charging display
-IP54, waterproof and dustproof + 2m drop protection
-Built-in 32GB memory card, expandable to 128GB

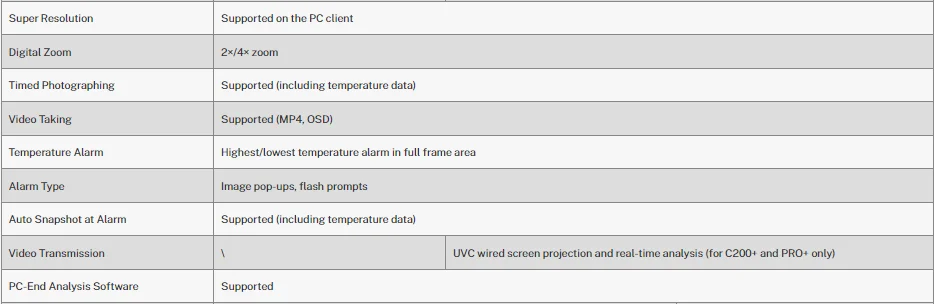

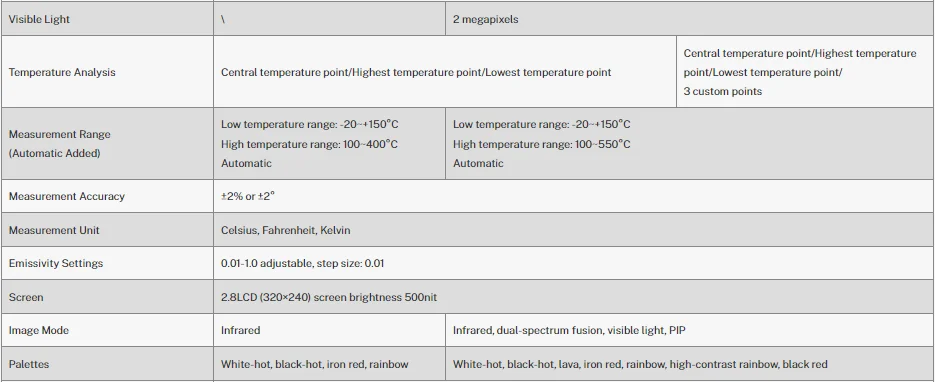

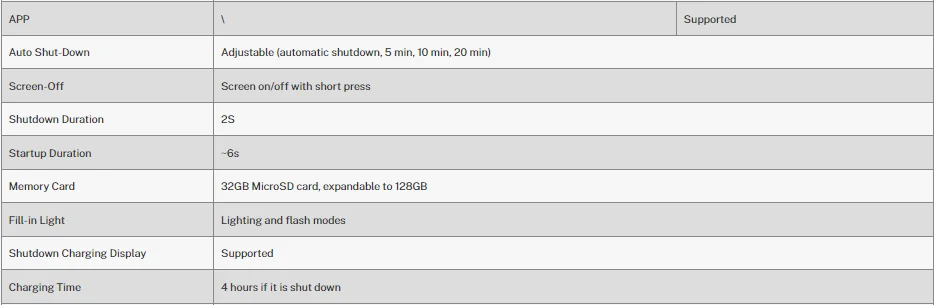

Specification

item	value
Warranty	1 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	SHENZHEN
Brand Name	SRAY
Model Number	C200+
Power	256*192 infrared detector
Model	C200+
Detector Type	Uncooled Vox
Detector Resolution	8-14μm
Infrared Spectral Band	256*192
Thermal Sensitivity	40mk
Focusing Mode	Focus-free
FOV	56°x42°
Measurement Range	-20 ℃~ 150 ℃ , 100 ℃~ 550 ℃
Measurement Accuracy	±2% or ±2℃
Screen	2.8LCD (320X240) screen brightness 500nit
