Accurately transmitting the on-site temperature data
* With multiple smaller electric focusing lenses, it can observe more targets at different depths using one lens, give more
accurate temperature data and generate high-quality infrared images.

* With 50Hz frame rate and 1000M network interface, it supports transmitting real-time on-site temperature data.

* Under the measurement range of -20°C~+550°C, the product makes it possible to monitor more industrial targets with
high-temperature requirements.

* Backed by the patented intelligent temperature measurement compensation algorithm, it greatly improves the measurement accuracy
to identify the fault root accurately, so as to help engineers to find the faults quickly.

Innovative hardware-software combination, making AT31 your powerful assistant
* With multiple network protocols including TCP, UDP, ICMP, and DHCP, it can monitor the temperature in real time and give an
alarm in case of any abnormal temperature. It is also compatible with ONVIF, GB28181, and protocols, easy to install on the
site. Meanwhile, it can share the analysis and alarms easily.

* Adopting the automatic focusing mode, it is more convenient for on-site testing and application.

* Display the test results of more points, lines, and areas, simplify the data acquisition at the back-end, and facilitate more
flexible applications with reduced cost. With SDK and upper computer software, it supports users' secondary development, which
is practical and benefits the users.

* Comply with the requirements of RoHS, Reach, and other EU environmental directives and can be exported with ease.

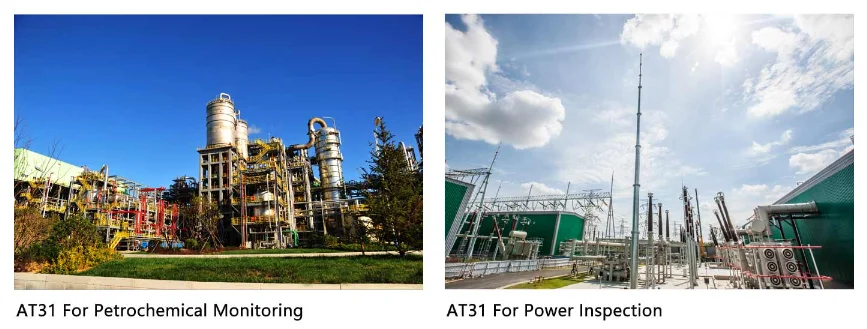

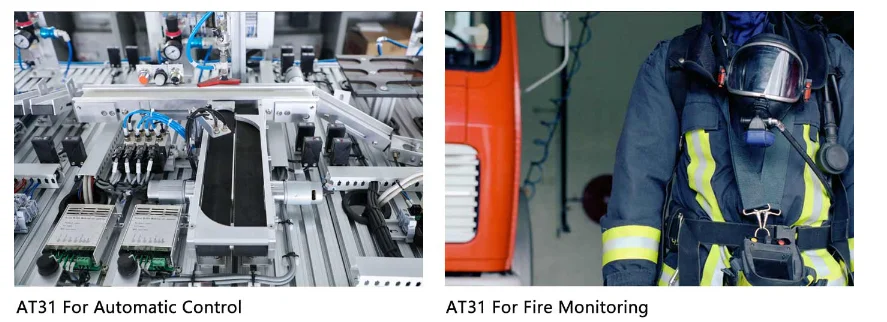

Applications of AT31 Automatic Focusing Online Thermal Camera

Specification

item	value
Warranty	1 years
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	SHENZHEN
Brand Name	IRAY
Model Number	AT31
Size	5555119(mm)
Weight	<150g
Type	Monocular
Magnification	1.0
Effective Visual Distance	1-50m
Operating Voltage	9~26V DC
Items	AT31
Resolution	384X288
Focal length	7.8mm,13mm,15mm,19mm
Focusing method	auto/manual focusing
Measuring Range	-20℃~+150℃,0℃~+550℃
Temperature Measurement Accuracy	±2℃ or ±2%
Network Interface	RJ45
Palette	Support 18 palettes
Operating Temperature	-20℃~+60℃
Network Protocol	TCP,UDP,ICMP,DHCP,RTSP,ONVIF

Packing & Delivery

carton box

Company Profile

Shenzhen SENMO Technology Co. , Ltd. . Main thermal imaging camera thermal imaging night vision instrument thermal imaging sight night vision instrument single binocular night vision telescope thermal imaging telescope and other products. Our company has very sophisticated production equipment, providing R&D and customization services from parts to ends, and you can even customize it to make you unique. The product defaults to our brand model. You can also choose neutral products and create your own brand. All products will pass strict quality inspection before leaving the factory to ensure their quality. We can produce or improve products according to your requirements.
