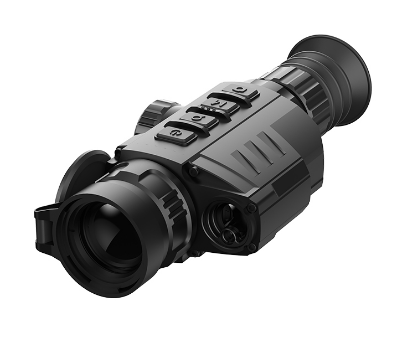

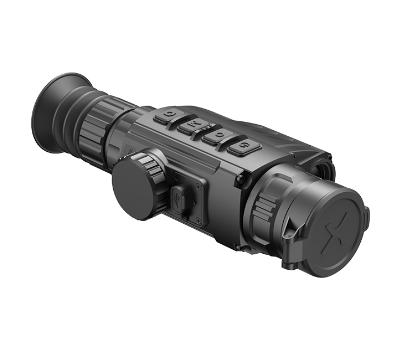

A10LRF thermalimaging sight

The wide view and easy operation will make your outdoor life get more fun
Characteristics
1024x768 high definition display
Built-in 32GB storage space. It can be used to take photos, videos and store images through mobile APP or be used as a display screen
The product is equipped with a high capacity 26650 battery for continuous battery life,7 hours life battery can be quickly replaced. NETD<40mk thermal imaging sensor ensures complete detail identification.

·12μm detector
·OLED display
·WI-FI&Photo&Video
·Physical distance measurement
·Digital compass&Msensor
·1800m detective range
·IP66 waterproof
Pseudo Color; Red Heat; White Heat; Black Heat

Application

Specification
|
Model |
A10 LRF |
|
Resolutio |
384×288 |
|
Pixel size |
12μm |
|
NETD |
≤40mk |
|
Objective lens |
35MM |
|
FOV |
7.5×5.7° |
|
Display |
OLED |
|
Resolution |
1024x768 |
|
Diopter adjustment |
-5~+5 |
|
Magnifification |
2.8-11.2 |
|
Battery |
26650 |
|
Operation time |
8H |
|
IP protection |
IP66 |
|
WIFI |
√ |
|
Compass |
√ |
|
Msensor |
√ |
|
Range |
Laser Ranging |
|
Discover |
1800M |
|
Weight |
600g |
|
Size |
225×100×65mm |
