TL342 thermal imaging sight

The wide view and easy operation will make your outdoor life get more fun
·12μm
detector
·42mm objective len
·OLED
display。
·External
laser rangefinder。
·2100m
detective range。
·IP67
waterproof
The TL series supports fast magnification of images by 2x, 3x and 4x electronic magnification for increasing visual amplification.
TL series products, supporting photo and video functions, have 32GB memory.

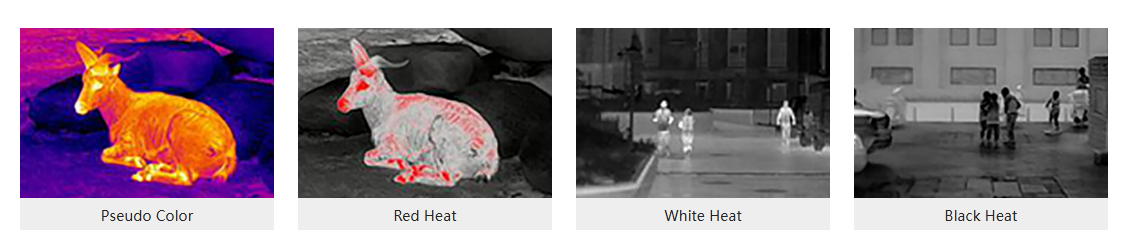

The image is clearer, the detail is more prominent。
TL
series support users to set the zeroing profile and zeroing distance
in the range of 1 to 999m. The default distance is
100m、200m、300m;
Select
the appropriate zeroing distance according to different target.
Demonstrate

Application

Specification
Model TL342
Type Uncoole
Resolution, pixels 384×288
Pixel Size, 12μm
NETD ≤20mk
Frame rate 60Hz
Objective Lens F42mm /1.0
Field of View, degrees 6.3×4.7°
Magnification, ×4~16
E-zoom, ×1 / 2 / 3 / 4
Eye relief, 55mm
Exit pupil diameter, 6mm
Detection Range,m(Target size: 1.7mx0.5m, P(n)=99%) 2197
Display type OLED
Resolutio 1024×768
Size, inch 0.39
BatteryType / Capacity / Output Voltage Li-Ion Battery Pack IBP-1 / 4400mAh / DC3.7V
Power Supply 3V~4.2V
External Power Supply 5V (Type C USB)
Max. Operating Time (at t=22℃), 6h
Max. Recoil Power on Rifled Weapon, g/s² 1000
Degree of protection, IP code IP67
Amount of built-in memory, Gb32
Operating Temperature Range, -20~+50℃
Laser RangefinderOptional
Weight, 840g
Dimension, 250×65×58mm
Wavelength, 905nm
Max. Measuring Range, m/y1000/1094
Measurement Accuracy, ±1m
