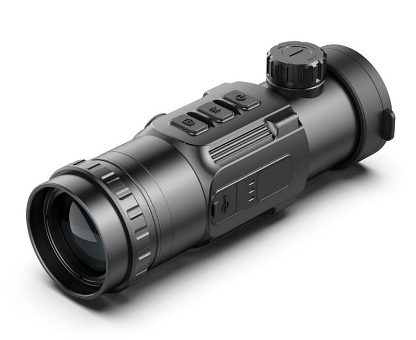

Thermal imaging transfer aimingLY050

50 mm lens, 640 resolution, 12μm detection movement can extend the battery compartment.

Quick switching between front thermal imager and hand-held thermal imager;
● Quickly install and remove hand-held eyepiece and front eyepiece;
● Long detection distance;
● 1024×768 high-resolution OLED display screen;
● Bluetooth remote control;
Four image modes-white heat, black heat, red heat and false color;
● Image electronic magnification: ×1, ×2 and × 4;
●Type-C interface power supply and data transmission;
● PAL analog video output;
● IP66 protection grade;
● Compact structure;
● Light weight and good impact resistance.

In the normal display mode, short press the menu key to switch the sequence of 'No menu-screen brightness-image mode-electronic zoom-exit the shortcut menu', and short press the power key and the correction key to adjust the parameters of each function. Quick menu interface.

●Screen brightness: there are four brightness levels: 1~4;

●Image mode: W (white heat), B (black heat), R (red heat) and C (false color);

●Electron zoom: the magnification is ×1, ×2 and ×4.

normal display mode, press and hold the menu key 3s to enter the advanced menu setting interface, and from top to bottom, there are six functional options, namely, Ultraclear mode, Bluetooth, video output, battery type, blind pixel correction and factory setting recovery.

In the advanced menu, rotate the machine around the optical axis 360 for three times, and a three-axis coordinate system will appear in the center of the image, enter the compass calibration interface, rotate the machine by using the decahedral calibration method, and automatically exit and complete the compass calibration after 30s. During calibration, press the power button briefly to exit the compass calibration interface at any time.

When LY050 is installed as an infrared expansion component on a white light sight, if the cross of the white light sight is not in the center of the infrared image, you can use the image calibration function to translate the infrared image to ensure the position consistency between the white light image and the infrared image.
