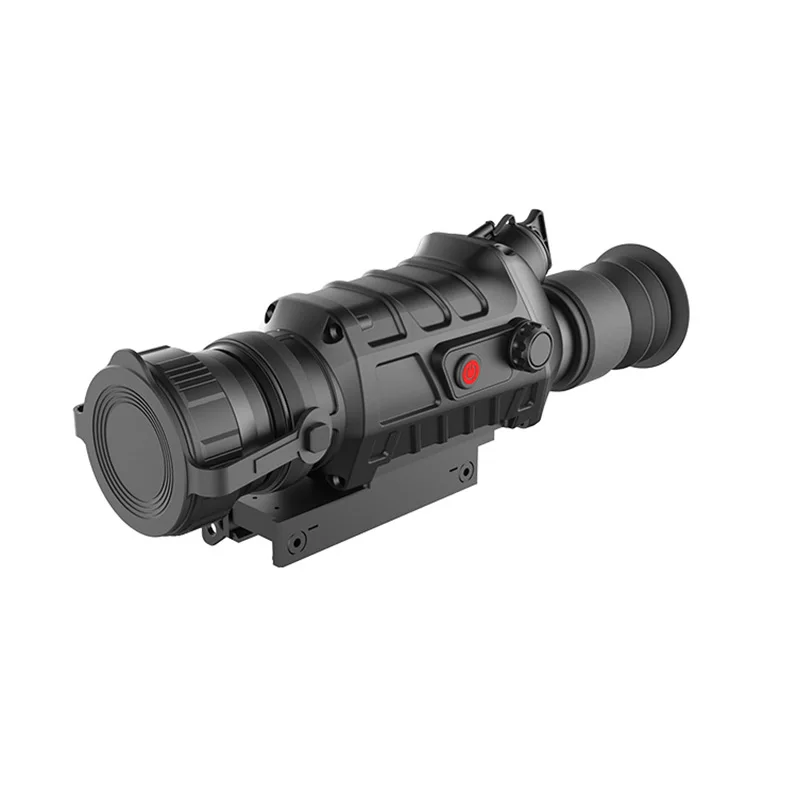

TS425/TS435/TS450 is an economical civilian infrared thermal imaging scope that includes 25mm/35mm/50mm objective lenses. With 400x300 pixel TEC metal-encapsulated thermal detector, it can detect longer range and capture vivid images of higher clarity.
TS425/TS435/TS450 thermal imaging telescope also features with compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in any harsh weather.

Features and Benefits

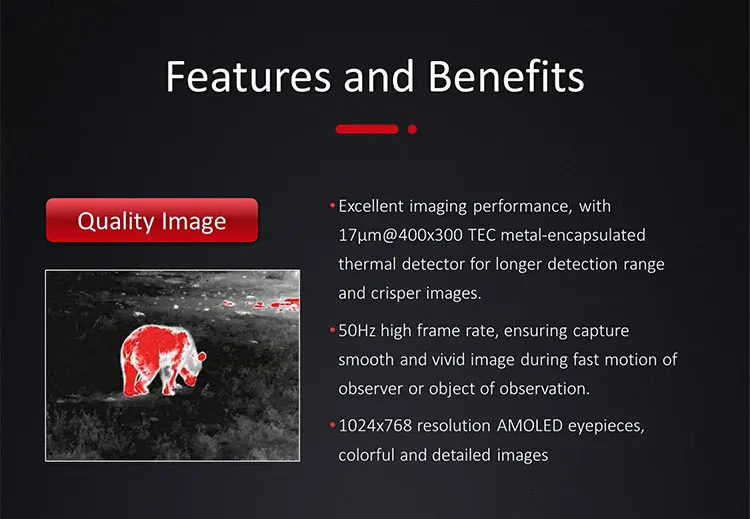

1. Excellent imaging performance, with 17μm @400x300 TEC metal- encapsulated thermal detector for crisper images. 2. Rugged and durable, IP67 degree of protection,high shock resistance, no fears of harsh weather. 3. Zoom in on the center of the reticle,and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy. 4. 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation. 5. 1024x768 resolution AMOLED eyepieces, colorful and detailed images 6. Battery-mount user-friendly design,both side can be mounted change battery easily in darkness.

Specification

Model	TS425	TS435	TS450
Detector Type	400×300 @17μm, VOx
Spectral	8μm~14μm
NETD	≤50mk
Focal Length	25mm F1.1	35mm F1.2	50mm F1.2
Focusing	Manual Focus
FOV	14.9°×11.2°	10.7°×8.0°	7.5°×5.6°
Display	Color 0.39-inch OLED Display, 1024×768
Eyepiece	Exit pupil distance 48mm, eyepiece magnification 14×
Magnification	1.6~6.4×	2.3~9.2×	3.3~13.2×
Video Output System	PAL 50Hz
External Video Display	Full color video output by external interface, with menu
Frame Rate	50Hz
Digital Zoom	2×,4×
Color Palettes	White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot
Picture-in-picture	On/off,the position is adjustable
hotspot tracking	Yes
Compensation Modes	Auto Compensation / Shutter Compensation / Scene Compensation
Calibration	25m/50m/100m
Stadiametric rangefinder	1.8m/0.5m/0.25m
Battery Type	Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device
Battery Operating Time	≥3H(Standard low temp battery,Observation status only)
	≥5H(Panasonic 3400mah standard 18650 battery,Observation status only)
Video Interface	Lemo
Operating Temperature	-40°C-50°C
Shock	500G/1ms
Encapsulation	IP67
Certificate	RoHS,CE
Weight & Dimensions
Weight(excl battery)	660g	660g	720g
Dimensions	230mm×90mm×75mm	230mm×90mm×75mm	250mm×90mm×75mm
Detection Range
Human:1.8m×0.5m	700m	1000m	1400m
Vehicle:2.3m×2.3m	1700m	2400m	3000m
Recognition Range
Human:1.8m×0.5m	350m	500m	700m
Vehicle:2.3m×2.3m	700m	1000m	1400m

Packing & Delivery

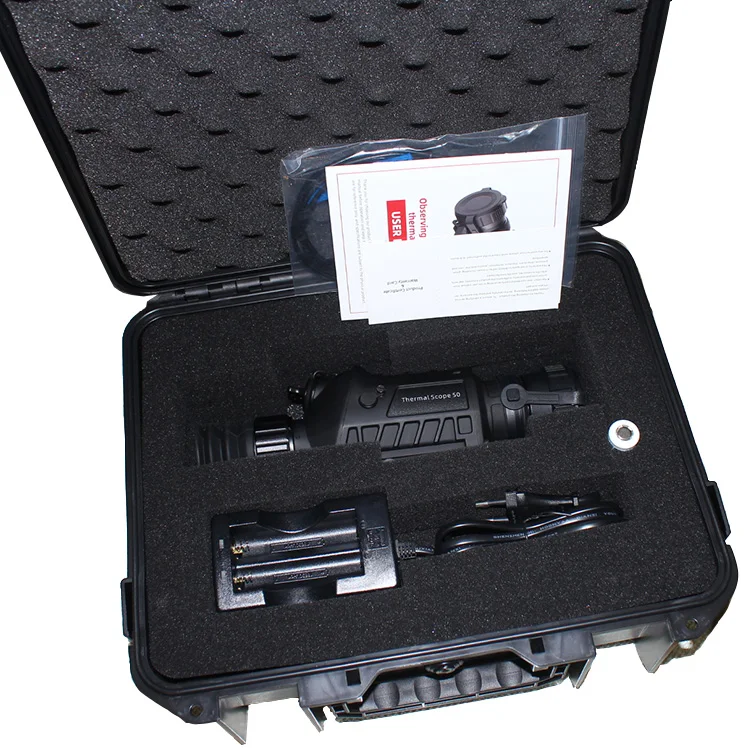

Safety Case+Carton Box
