IRAY M620 Professional Enhanced Thermal Camera Handheld manual focus 384*288 pixels with WiFi and Isotherm features

Name: IRAY M620 Professional Enhanced Thermal Camera Handheld manual focus 384*288 pixels with WiFi and Isotherm features
Rating: 4.9 (98 reviews)

产品详情

Product Description

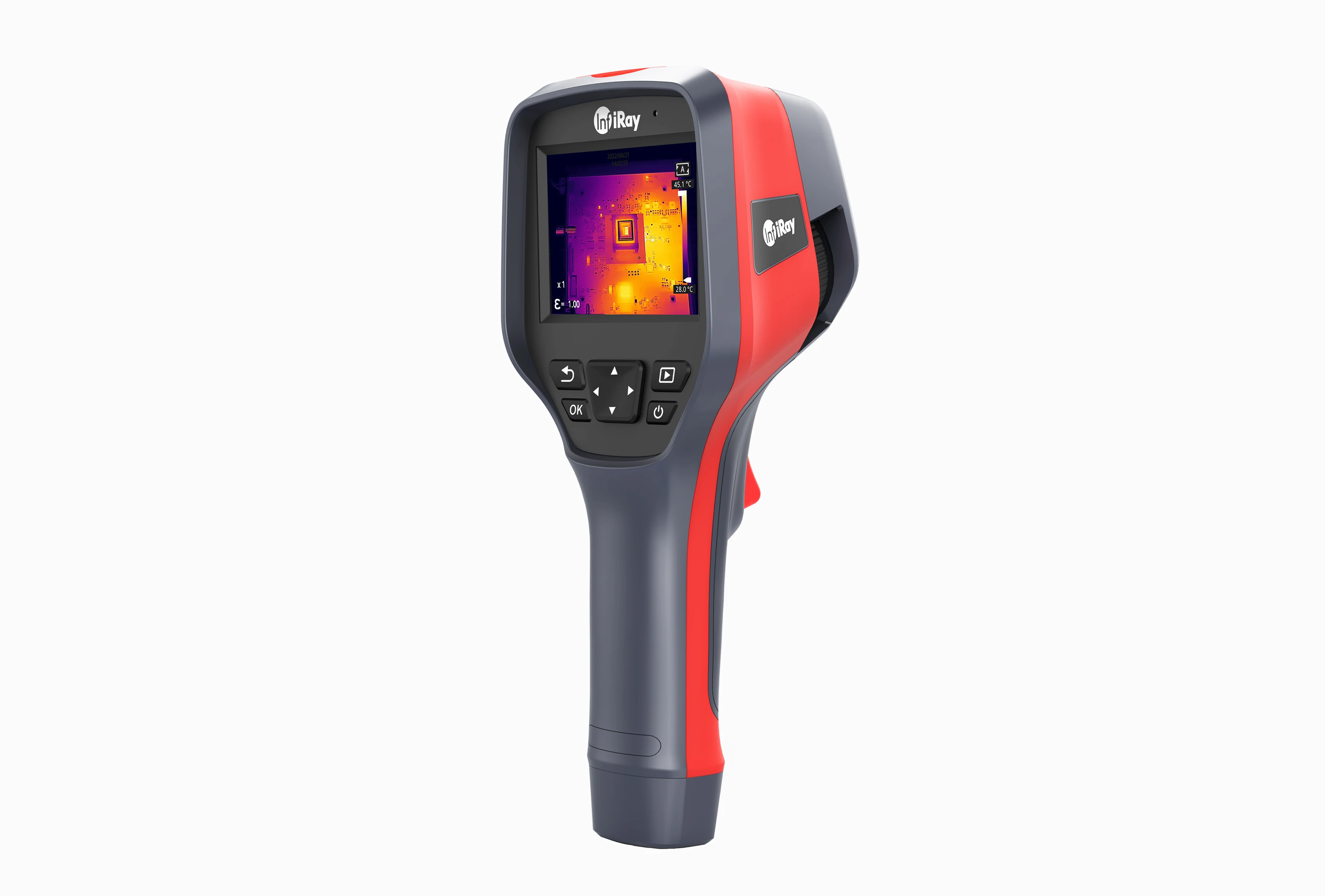

M620 Handheld Thermal Camera

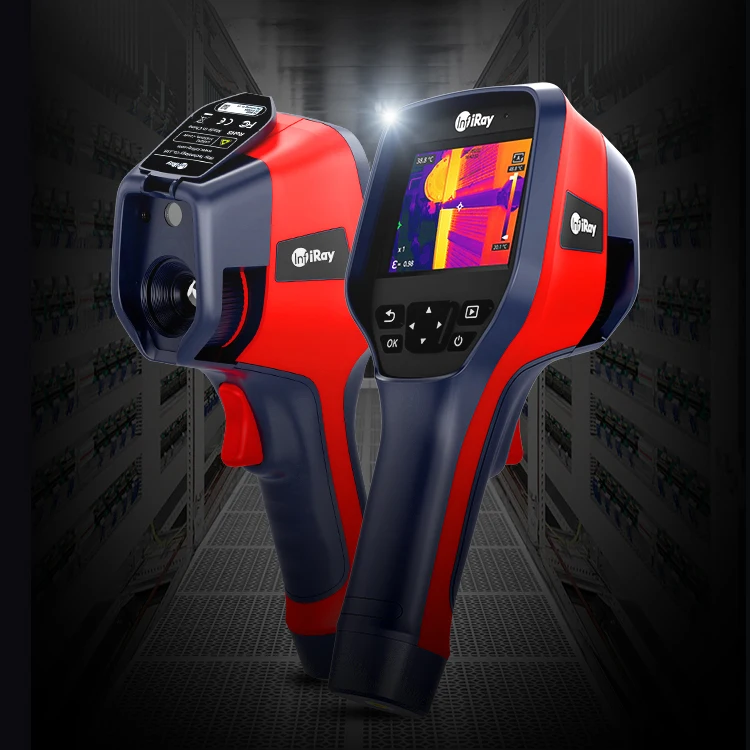

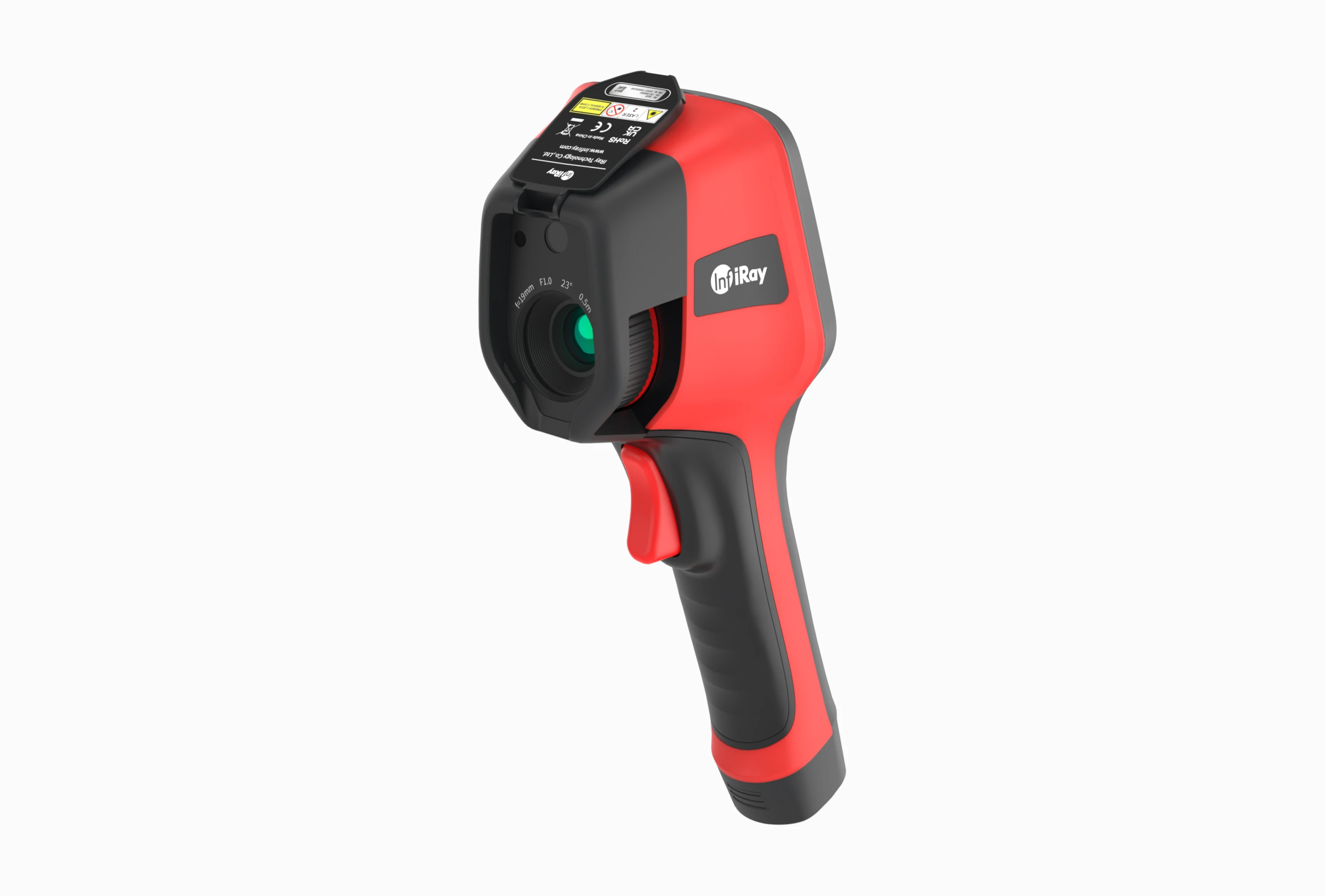

InfiRay M620 Professional Handheld Infrared Camera is a high-resolution manual focus thermal camera.

640*512 detector

12μm pixel size

19mm lens

-20℃~650℃

±2℃/±2%

3.5-inch touch screen

Features and Benefits

1. -20° ~ 650 ° C Wide temperature range, suitable for more scenarios, such as: mold Steel temperature monitoring.2. The 12μm advanced process, compared to the traditional 17μm process, brings low power consumption and overall module miniaturization.3. With spatial resolution as low as 0.63mrad, it is easy to capture fine details and see far away without missing temperature details.4. Standard 32GB MicroSD card, maximum expandable capacity up to 512GB, support long video recording, long time field Trouble shooting, sufficient memory. 5. IP54 protection grade, 2 years warranty.

Specification

item	value
Warranty	2 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	SHENZHEN
Brand Name	SRAY/Infiray
Model Number	M620
Power	640*512 infrared detector
Model	M620
Detector Type	Uncooled Vox
Detector Resolution	8-14μm
Infrared Spectral Band	640*512
Thermal Sensitivity	35mk
Focal Length	19mm
FOV	23°*18°
Measurement Range	-20 ℃~ 150 ℃ , 100 ℃~ 650 ℃
Measurement Accuracy	±2% or ±2℃
Digital Zoom	1X, 2X, 4X, 8X
Focusing mode	manual focus

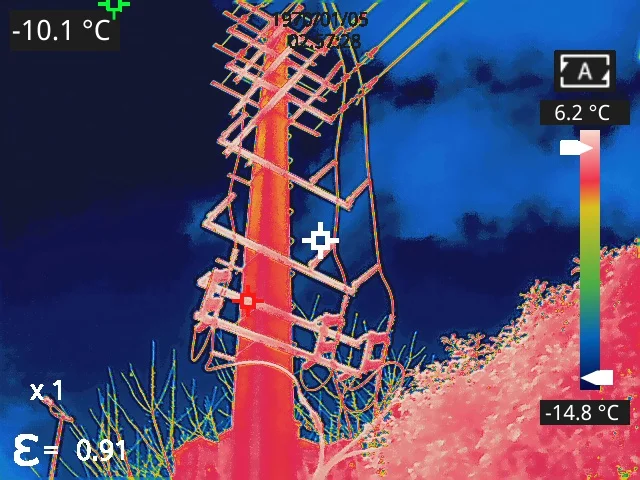

Temperature measurement model	Central point/hot and cold spot tracking and temperature display
Customize point, line, and area temperature measurement	Movable point/line/area temperature measurement; Supports up to 10 points, 10 regions, Ten lines
Thermometric unit	Degrees Celsius, degrees Fahrenheit, Kelvin
Emissivity setting	0.01~1.00，step size 0.01
Ambient temperature setting	-10℃~50℃，step size 1℃
Distance setting	1~20m，step size 1m
picture mode	Detail enhancement, infrared, visible light, picture in picture, dual light fusion
pseudo color	10 kinds
temperature alarm	YES
type of alarm	Image alarm
laser designator	YES
visible light camera	500w pixels
Photo/video storage	YES
Display size	3.5-inch touch screen（480*640）
storage card	32GB MicroSD-mini，Maximum expandable capacity up to 512GB
type of battery	Rechargeable lithium battery, removable
power interface	USB Type-C
WIFI	YES
working hours of battery	4h
Tripod interface	YES，1/4″-20-UNC
Dimensions (H × W × D)	258.4105.1102.3mm
weight	683.5g
authentication	CE/FCC/UKCA/RoHS/TELEC/NCC/TSCA/WEEE

Packing & Delivery

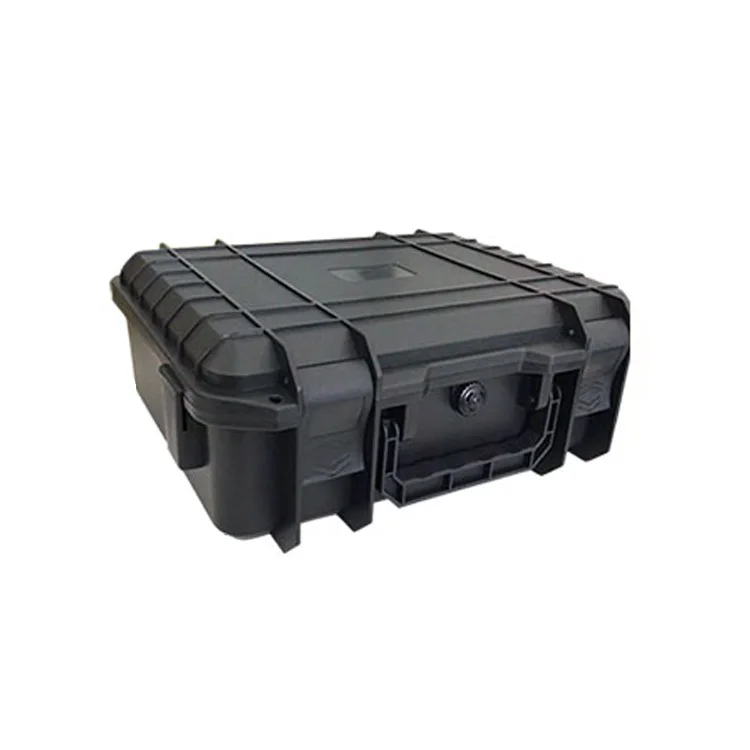

Safety Case+Carton Box
