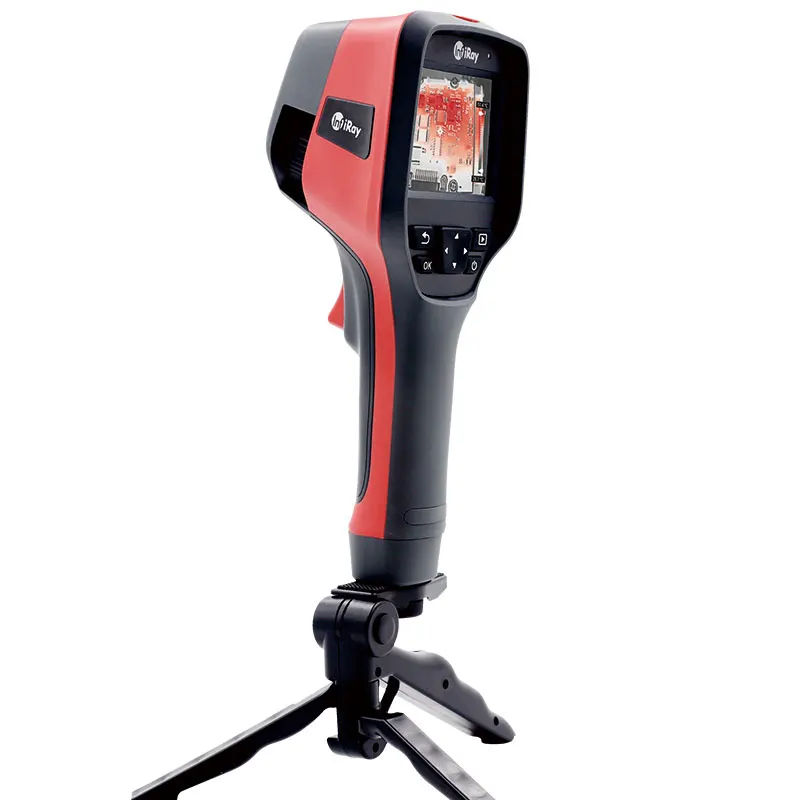

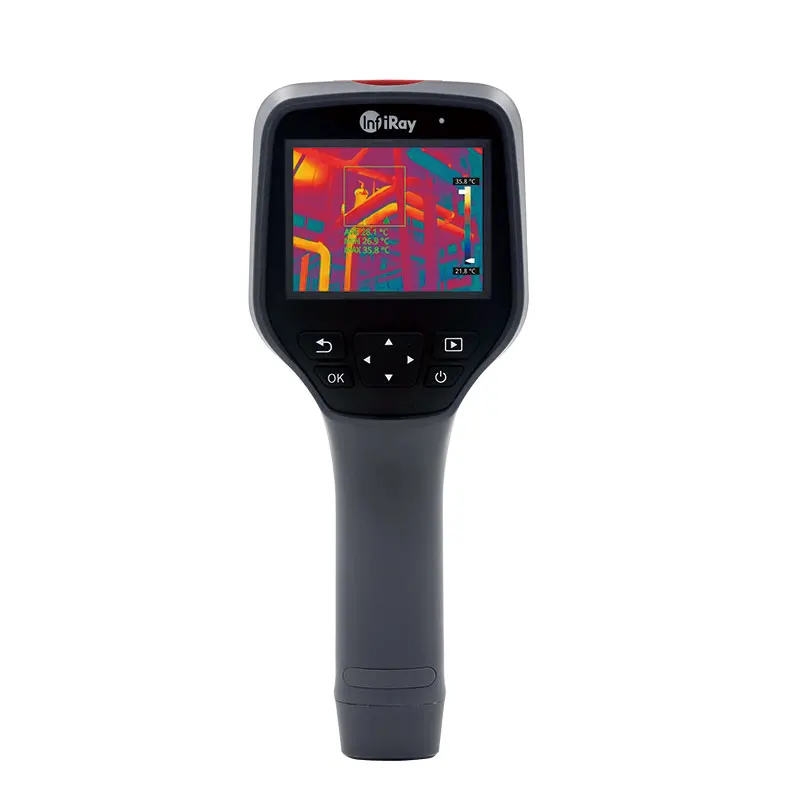

InfiRay M320 Professional Handheld Infrared Camera is a high-resolution manual focus thermal camera. Built-in InfiRay
high-performance 12μm 384×288 infrared detector, equipped with a 500W visible light camera, 35mk thermal sensitivity, and precise
manual focus function, can easily present high-definition thermal images. Coupled with rich analysis and data interconnection, it
is the "right-hand man" for engineers with high requirements such as electric power, electrical automation, building inspection,
and commercial HVAC.

Product Description

Measurement range: -20℃~+650℃
Image modes: Thermal imaging, thermal fusion, visible light, PIP
Thermal resolution: 384×288
Pixel size: 12μm
Focal length: 9.1mm

Features of M320 Handheld Thermal Camera

1. High-performance thermal imaging core
- High resolution, high frame rate, high precision, wide range
- Native 110,000-pixel thermal imaging + 5,000,000 visible light imaging
- USB plug-and-play analysis, supporting real-time transmission and analysis of full-frame temperature information

2. Advanced interactive functions
- 3-point temperature display can define point/line/area temperature measurement
- The analysis data on the PC side is complete, and the App is easy to operate
- Support high and low temperature alarm for the whole frame, and take pictures at regular intervals

3. Easy to use and reliable machine performance
- Rugged and durable, IP54 protection level + 2 meters drop resistance
- Laser pointer module can quickly locate the observation target
- High-definition thermal images are displayed on 3.5” high-definition touch screen
- Voice annotation and QR code naming functions free your hands

Specification

item	value
Warranty	1 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	SHENZHEN
Brand Name	SRAY/Infiray
Model Number	M320
Power	384*288 infrared detector
Model	M320
Detector Type	Uncooled Vox
Detector Resolution	8-14μm
Infrared Spectral Band	384*288
Thermal Sensitivity	35mk
Focal Length	9.1mm
FOV	27°*20°
Measurement Range	-20 ℃~ 150 ℃ , 100 ℃~ 650 ℃
Measurement Accuracy	±2% or ±2℃
Digital Zoom	1X, 2X, 4X, 8X
Focusing mode	manual focus
Temperature measurement model	Central point/hot and cold spot tracking and temperature display
Customize point, line, and area temperature measurement	Movable point/line/area temperature measurement; Supports up to 10 points, 10 regions, Ten lines
Thermometric unit	Degrees Celsius, degrees Fahrenheit, Kelvin
Emissivity setting	0.01~1.00，step size 0.01
Ambient temperature setting	-10℃~50℃，step size 1℃
Distance setting	1~20m，step size 1m
picture mode	Detail enhancement, infrared, visible light, picture in picture, dual light fusion
pseudo color	10 kinds
temperature alarm	YES
type of alarm	Image alarm
laser designator	YES
visible light camera	500w pixels
Photo/video storage	YES
Display size	3.5-inch touch screen（480*640）
storage card	32GB MicroSD-mini，Maximum expandable capacity up to 512GB
type of battery	Rechargeable lithium battery, removable
power interface	USB Type-C
WIFI	YES
working hours of battery	4h
Tripod interface	YES，1/4″-20-UNC
Dimensions (H × W × D)	258.4105.1102.3mm
weight	670g
authentication	CE/FCC/UKCA/RoHS/TELEC/NCC/TSCA/WEEE

Packing & Delivery

carton box+safe box
